Nebula 30kW DC charger

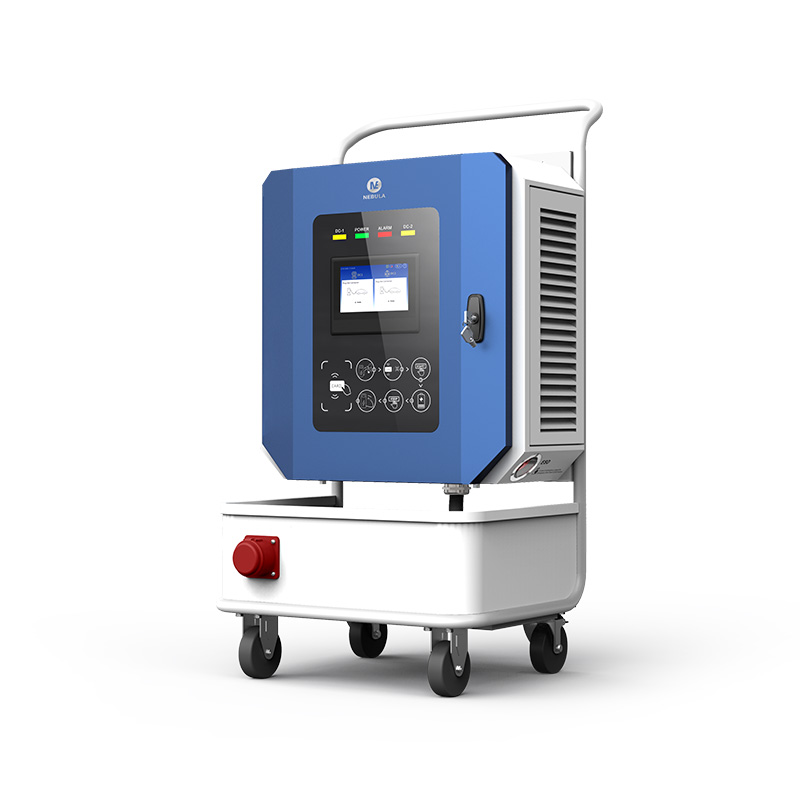

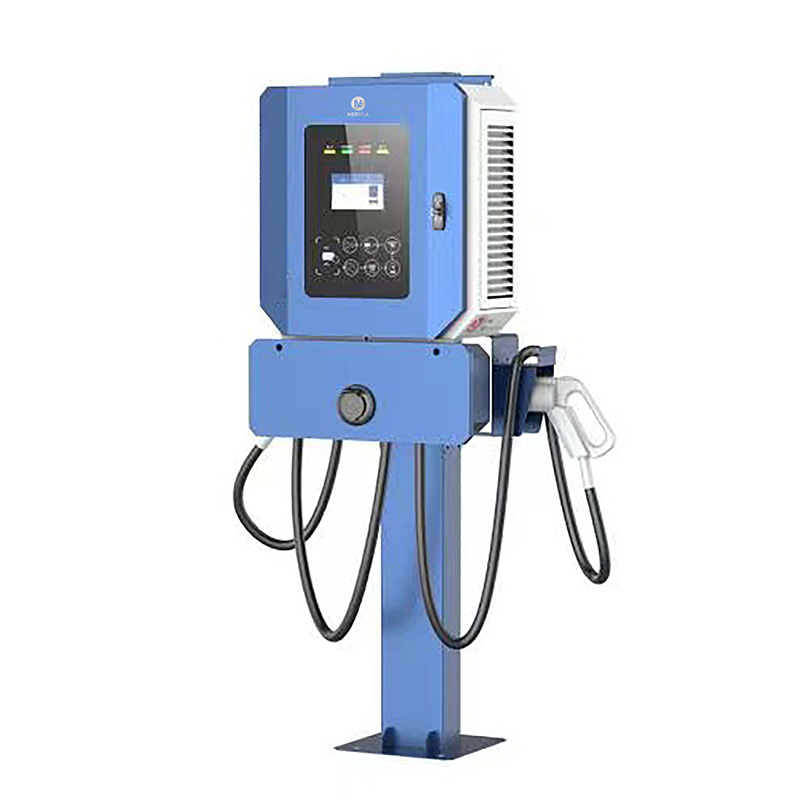

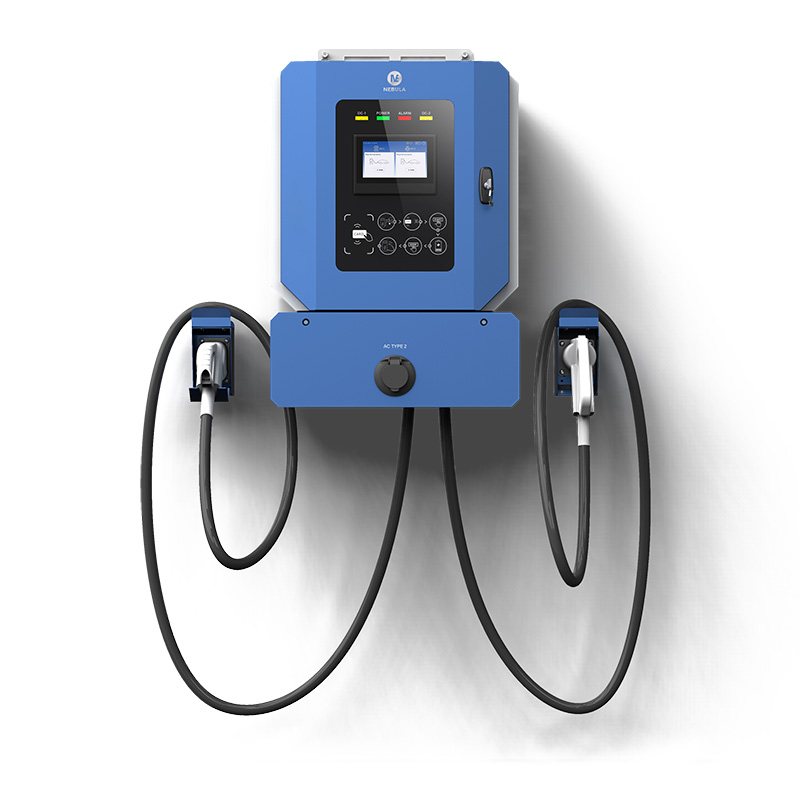

Nebula 30kW DC charger is specially designed for easy wall mounting or stand column installation applications for CCS / CHAdeMO/GBT standard EV fast charging, small size and light weight,easily to install and move. User friendly interface. IP54 protection, sturdy and durable for outdoor application


Product Detail

4
6
3

Main Features:

1.CCS type1/ type2/ CHAdeMO/GBT support

2.Optional AC Charging cable or socket support

3.OCPP 1.6 J support

4.CE EMC Class B

5.Full safety function with output contactor and fuse,EPO,SPD,MCB, eakage switch,insulation detector protection

6.RCD-A Main input protection, Optional RCD-B when configure AC charging

7.User friendly interface with 7" TFT touch screen LCD

8.Multiple charging modes: Auto basis,Time basis,Amount basis,Energy basis,SOC basis

Model NEAOCDC-30100010002-W201-G
Input Power Factor >0.99
Input Total Harmonic Current <3%(Rated Input)
Output DC voltage range DC 150V-1000V
Max DC output current 100A
Max DC output power 30kW
Max system efficiency >95.0%(Rated input and output)
Ambient temperature -20 ~ +70°C , full power output below 50℃,Power derating 5%/ ℃ above 50℃
Protection Class IP54/K10
