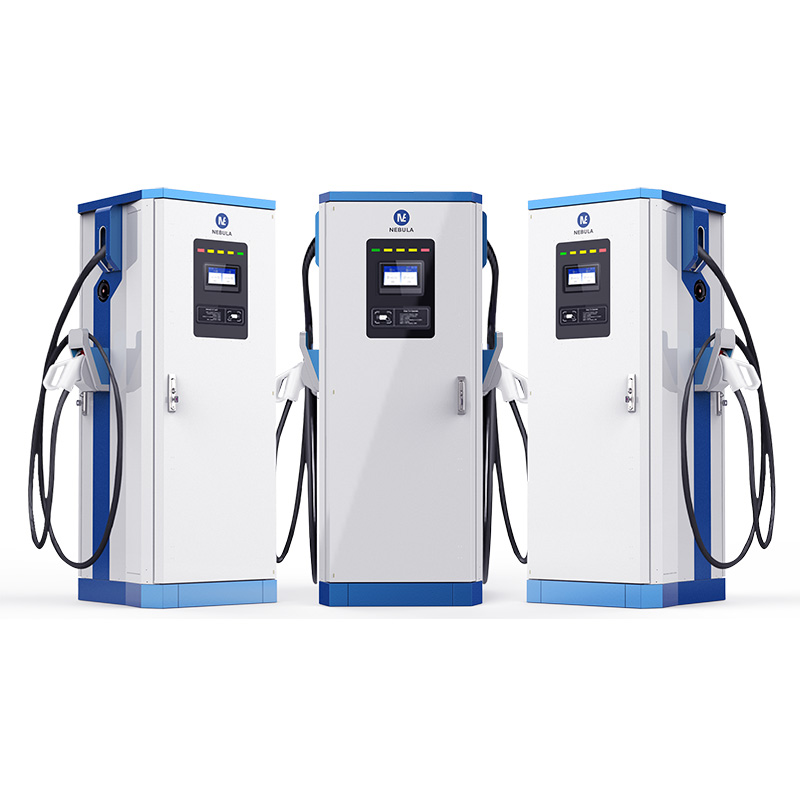

Nebula 180kW Fast DC charger

Nebula 180kW Fast DC charger is specially designed for high protection and high reliability applications with CCS /CHAdeMO /GBT/AC Type 2 standard EV charging. Integrated design with IP55 standard for harsh environment applications. User friendly interface. Easily configure the power from 60 to 180k


Product Detail

1

(60kW, 120kW and more specifications are available)

Main Features:

1.CCS1 or CCS2 , CHAdeMO and GBT support , AC Type 2 cable or socket support

2.OCPP 1.6 J support

3.Optional CoolRingTM function realize the power transfer between the two chargers which can get max 360kW in one charger

4.Full safety function with output contactor and fuse,EPO,SPD,RCD, leakage switch,insulation detector protection

5.User friendly interface with 7" TFT touch screen LCD

6.Multiple charging modes: Auto basis,Time basis,Amount basis,Energy basis,SOC basis

7.Multiple power distribution modes: Stand alone,Current switch,Plug switch,Full hold,Master slave

8.LAN and optional LTE wireless support, RFID authorization and Mobile App payment support

Specification

Model EXP180K2-HT
Input Power Factor >0.99
Input Total Harmonic Current <5%(Rated Input)
Output DC voltage range DC 150V-1000V
Max DC output current 600A@300V/ 360A@500V/ 180A@1000V Each charging cable's max output current is 200A/CCS (optional 350A), 250A/GBT, 125A/CHAdeMO
Max DC output power 180kW
Max system efficiency >95.0%(Rated input and output)
Ambient temperature -20 ~ +70°C , full power output below 45℃,Power derating 5%/ ℃ above 45℃
Protection Class IP55/K10
